Product Description

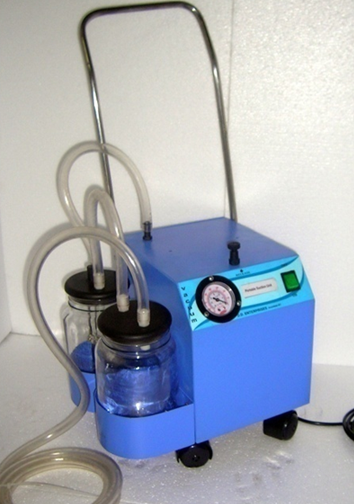

Hi - Vaccum major suction unit CHROMADENT MODEL DEULUX M-VII with crompton motor and complete SS. Cabinet Vbelt and pulley mechanism

Technical Specifications :

• Capacity : -760 ± 10mm Hg regulable at 30 Ltrs / min

• Power : 230V, 50 Hz, 4 ± 0.5 Amps, 200 watts

• Vacuum Gauge : 2. inch, BCPM,. 0-760 mm Hg calibration

• Jars : Glass (2 x 1.5 Ltr.), fitted with specially design self-sealing rubber lids

• Pump Type : Rotary vane pump mounted on ? Hp Local made Motor and provided with oil tank for oil-immersed performance

• Housing : M.S. Powder coated cabinet mounted on castors for easy mobility

• Dimensions & Weight : 13" x10" x36",18 Kg

• Unique Overflow Cut-off System for motor protection
